Stability Test Chamber

Description

Feature
Microprocessor PID Control
Provides high precision temperature, relative humidity, illumination and CO₂ control for uniform and stable growth environment
Self – Diagnostic and Alarm system
Automatically check any malfunction or errors and visible alarm system
Forced Air Circulation System
Silent and durable fan motors to maintain uniform temperature and humidity by air circulation from down to top air flow direction
Non-CFC/HCFC Refrigeration System
CFC / HCFC – free Hermetically sealed compressor and eco – friendly refrigerant gas are used for compliance with the New Environmental Regulation
Lamp-on-Delay system
Protects plants from stress by preventing sudden change of the light strength and switch on / off time control
Automatic water supply system
Distilled water or de – ionized water with water purifier is supplied by built-in reservoir at chamber
Technical Design and Structure
Complete sealed stainless steel chamber with light transferable 2 side vacuum sealed pair glass walls and a front glass inner door with solid out door built – in light bank
Light Bank System (Option)
With 8 step programmable control up to 35.000 Lux available various lamp selection
Lab – Dog DVR System (Option)
Video recording and monitoring with internet system
Vertical Direction Lightning
Microprocessor Programmer PID Control with PC Interface (Option)

• Monitoring 16 channel Connected into 1 Computer with Labtech Hub Software

• Data Logging and Recording time and temperature shown set value and present value

• Graphic monitoring for step programmed process of time and temperature on real-time

Programmable Operation Cycle

• Programmable Temperature, Humidity, Illumination for 24 hour cycle

Optional Controller

• 120 Patterns / 1200 Segments

• Monitoring on PC Software

• Remote operation & editing programs

• Graph & Data acquisition

• Converting saved data to spreadsheet

• Mono color display (Option color display)

Specification

MODEL

LGC-4201T

LGC-4202T

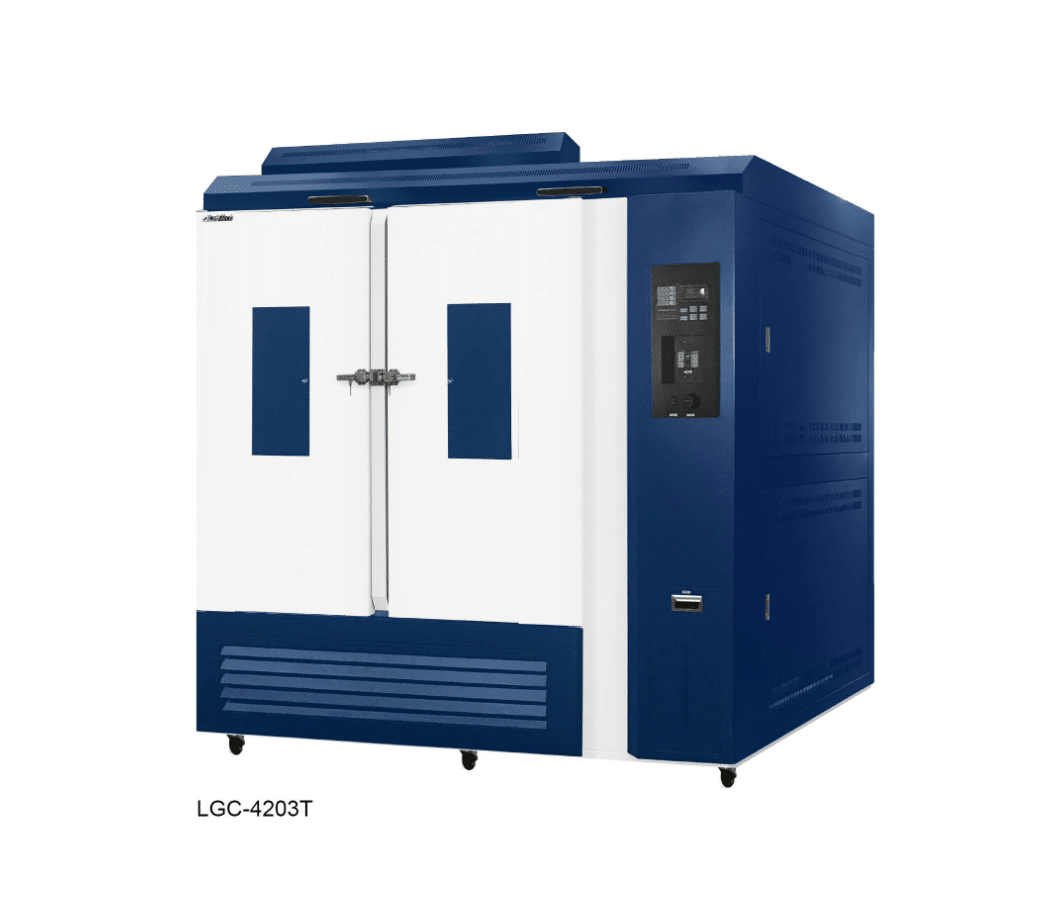

LGC-4203T

Dimensions   Inner

(WxDxH mm) Outer

700x700x1200

1426x846x2065

900x900x1200

1565x1050x2065

1400x900x1200

2060x1100x2065

Capacity

588ℓ

972ℓ

1512ℓ

Shelves

3EA

6EA

6EA

Controller

Microprocessor PID Program Controller with Alarm System

Display

LCD Back Light PV & SV Display

Temperature

Range 0°C to 60°C (Light Off) / 10°C to 60°C (Light On)

Set Accuracy ±0.1°C / Uniformity : ±1.0°C at 20°C

Heater

3kW

4kW

5kW

Compressor

3 / 4HP

1HP

1HP

Humidity

Range 30% to 98% RH

Set accuracy ±1% / Uniformity : ±2% to 3% at 60% RH

Evaporation by Fan with Heater

Illumination  Range

Sensor

0 to 25000 Lux (Option 35000 Lux)

Photo sensor with flexible cable

Material    Interior

Exterior

Ceiling

Stainless steel 304

Epoxy powder coated EGI Steel

Tempered safety pair glass

Door

Silicone packing latched door with vacuum sealed pair glass windows

Electric Supply

110V 60Hz or 220V 50/60Hz

Optional Accessories
