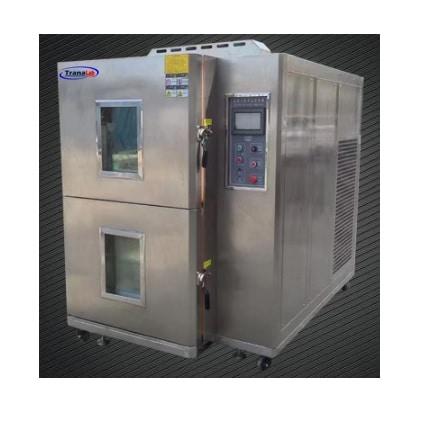

Thermal Schock Chamber

Description

SPECIFICATION:

Model	TR-TSC2-50	TR-TSC2-80	TR-TSC2-100	TR-TSC2-150
Capacity	50 liters	80 liters	100 liters	150 liters
Basket Size WDH	350 ×350 ×400mm	450×450×400mm	500×500×400mm	600×600×420mm
External Size WDH	1120 ×1850 ×1820mm	1220×1950×1820mm	1270×2020×1820mm	1390×2120×1820mm
Temp Shock Range	-40ºC~+150ºC
Heat Room Temp Range	+50 ~ +150ºC (Adjustable)
Cold Room Temp Range	-10 ~ -40ºC (Adjustable)
Control Accuracy	±0.2ºC
Temp Fluctuation	±0.5ºC
Temp Uniformity	±2.0ºC
Heating Rate	Rt ~ +150ºC (30 min)
Cooling Rate	Rt ~ -40ºC (30 min)
Shock Rate	Basket moved from one room to another room need 20 seconds, the temperature need 5 min to stabilize
Controller	7.0 inch program touch screen controller, RS232/485 port, USB data port + English computer software
Internal Material	SUS304 mirror stainless steel
External Material	SUS304 brushed stainless steel (Color paint is free if need)
Insulation Material	Polyurethane foam (PU foam)
Protection	Over-temperature protection, Over-temperature of compressor protection, Power phases protection.
Cooling Way	Water cooling (Standard with water cooling tower)
Sensor	Temperature: PT100
Power Supply	380 ~ 415V, 50Hz, 3-phases
Warranty	1 Tahun
Standards	Water cooling tower×1, Shelf×2, Wheel caster×4, User manual×1, Controller manual×1
