Description
Feature
- Ideal for fine vacuum Drying in High Efficiency Vacuum Pressure from 10 to 760 Torr
- Precision mechanism of Vacuum Chamber of Structure and Flange Surface with mechanical
- Seal
- Microprocessor PID Temperature Control up to 200°C

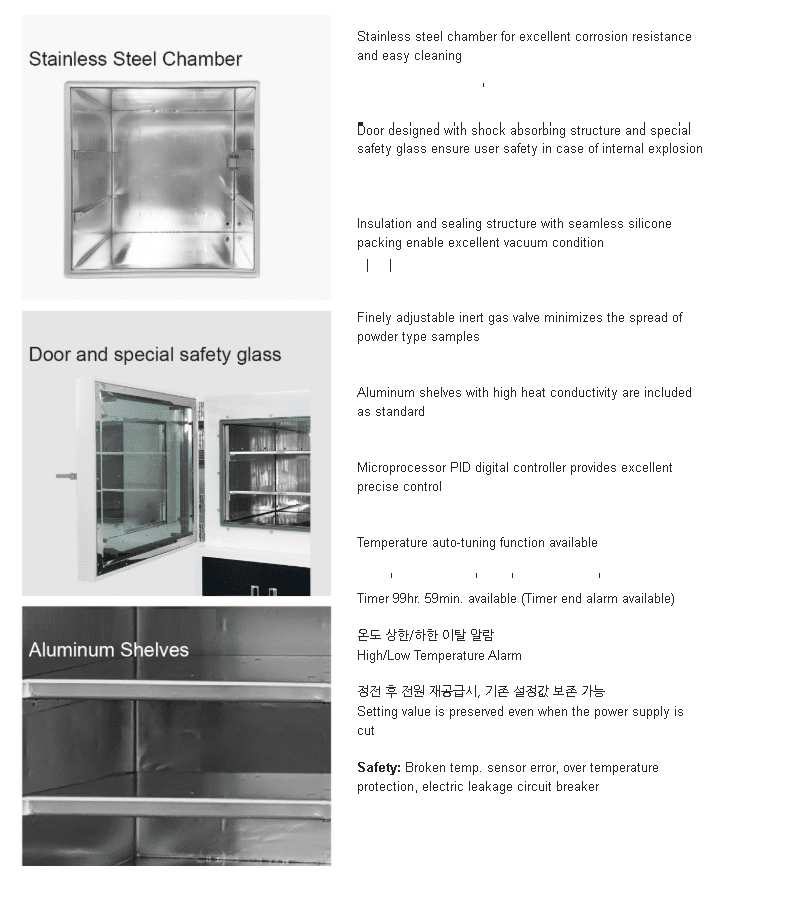

- Heavy duty stainless steel chamber & durable Exterior
- Easy to move and install with foot master caster
- Safety and convenience with sliding lack shelf
Programmable Controller(Optional PC Interface)
-
10 Step Microprocessor PID Program Controller RS-232/485 PC Interface
-
Monitoring 16 Channel Connected into 1 Computers with Labtech Hub Software
-
Graphic monitoring for step programmed process of time and temperature on reel-time

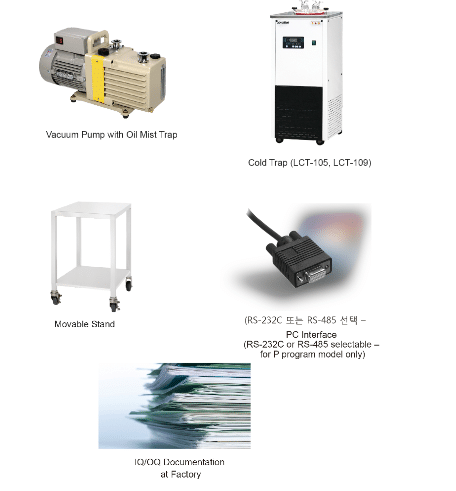

Optional Accessories
Specification
MODEL
|

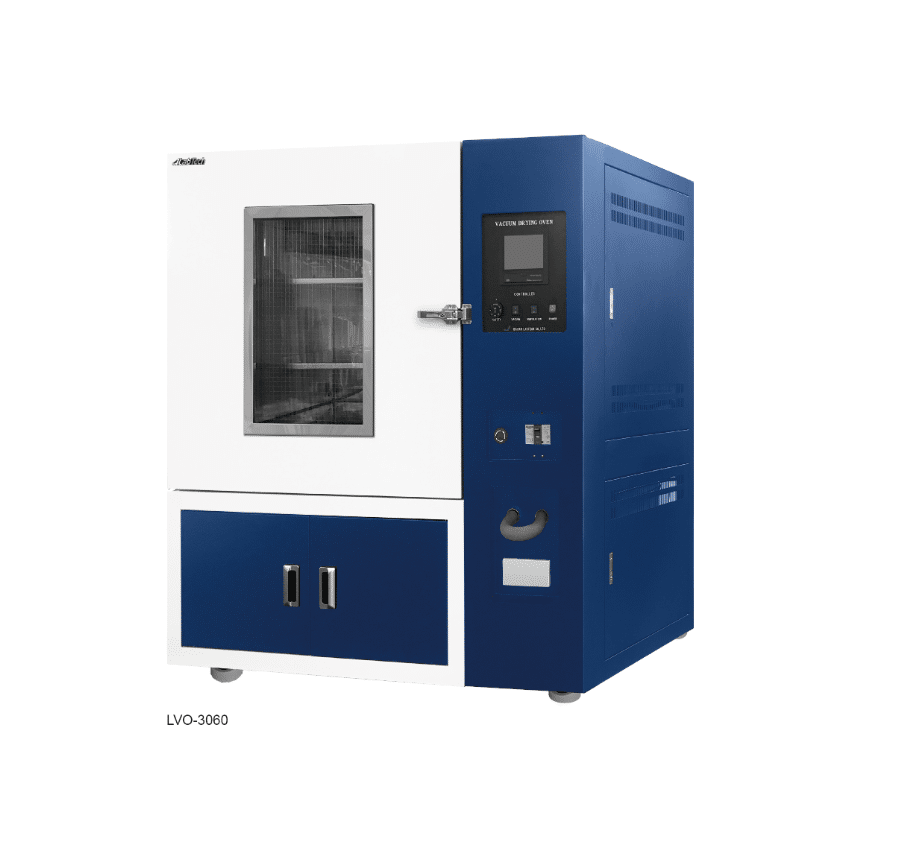

LVO-3060
|
LVO-3070
|
LVO-3080
|
LVO-3090
|
LVO-3100
|
Dimensions Inner
(WxDxHmm)Outer
|
600x600x600
950x800x900
|
700x700x700
1050x900x1000
|
800x800x800
1150x1000x1100
|
900x900x900
1250x1100x1200
|
1000x1000x1000
1350x1200x1300
|
Capacity
|
216ℓ
|
343ℓ
|
512ℓ
|
729ℓ
|
1000ℓ
|
Heater
|
6kW
|
2kW
|
7kW
|
8kW
|
10kW
|
Vacuum Pump (Option)
|
500ℓ/min
|
600ℓ/min
|
700ℓ/min
|
1500ℓ/min
|
1500ℓ/min
|
Controller
|
Microprocessor PID Program Controller with Alarm System
|
Display
|
4 Digits LED Display
|
Timer
|
99min 59sec. / 99hr 59min / 99days 23hours / Continuous Selectable
|
Temp. Range
Set Accuracy
Uniformity
|
Ambient +15°C to 200°C
±1.0°C
±3.0°C at 120°C
|
Vacuum
|
10 ~ 760mmHg (10~760 Torr, 0~0.1 Mpa)
|
Material Inner
Outer
|
Stainless Steel, Thickness 5 to 10mm depends on model and vacuum pressure
Epoxy powder coated EGI steel
|
Door
|
Heavy-Duty solid door with Thermally & Physically Safety Tempered Glass Window
|
Safety
|
Over Current & Leakage Breaker, Hi-Low temp protector
|
Electric Supply
|
220V or 380V 3 Ph 4 line, 50/60 Hz
|
