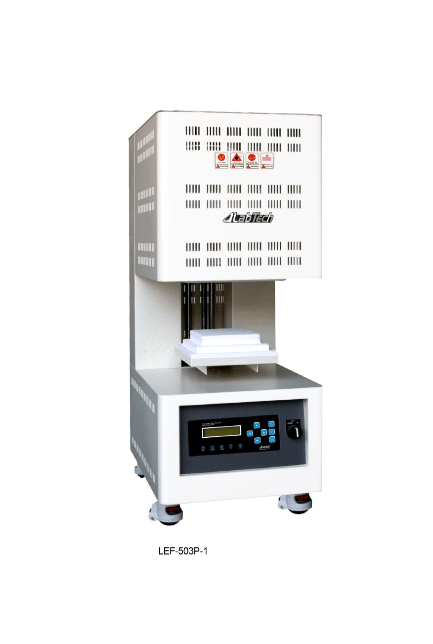

Elevator Furnace

Elevator Furnace

Feature Elevator Furnace

Durable Molded Ceramic Fiber Insulated Chamber And air jacked double walled case
Embedded Heating Element
Replaceable embedded heating elements installed in each

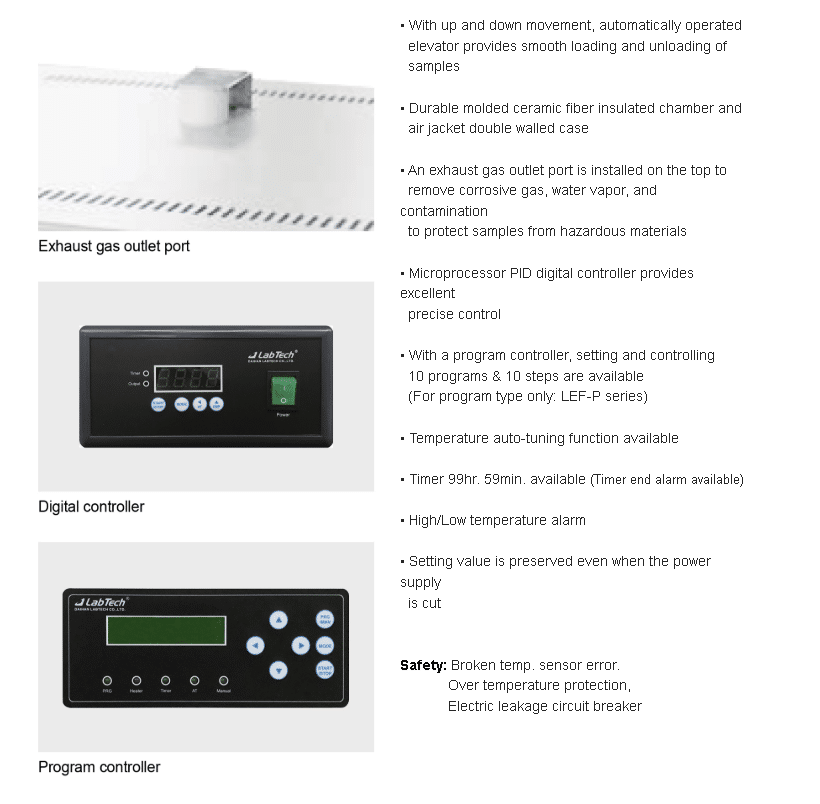

Exhausted Gas Outlet Port Installed on the Top remove corrosive gas, water vapor and contamination for protection from any hazardous materials
Microprocessor PID Digital Controller
Provides for accuracy and reliability, with timer function auto start on-off time and alarm system
10 Step Microprocessor Program Controller (Option)
Automatic operated elevator provides for smooth loading and unloading of samples by up and down movement

Description

Model	LEF-503S-1	LEF-505S-1
Controller	Digital PID Controller
Model	LEF-503P-1	LEF-505P-1
Controller	Microprocessor 10 Step Program Controller
Dimensions Interior	120x120x140	140x140x160
(WxDxH mm) Exterior	390x480x550	420x540x570
Capacity	2.0 ℓ	3.0 ℓ
Heating Capacity	1.4kW	2.2kW
Max Temperature	1100° (recommendable to use 200°C below the max. temperature)
Output Regulator	SSR unit control
Thermocouple	K type CA sensor
Heating Element	Embedded Heat Plate
Insulation	Vacuum Molded Ceramic Fiber
Electric Supply	110V, 60Hz or 220V 1Phase or 380V 3 Phase,50/60Hz

Max. Temperature 1200°C Series (recommendable to use 200°C below the max. temperature)
Model	LEF-503S-2	LEF-505S-2
Controller	Digital PID Controller
Model	LEF-503P-2	LEF-505P-2
Controller	Microprocessor 10 Step Program Controller

Max. Temperature 1250°C Series (recommendable to use 200°C below the max. temperature)
Model	LEF-503S-3	LEF-505S-3
Controller	Digital PID Controller
Model	LEF-503P-3	LEF-505P-3
Controller	Microprocessor 10 Step Program Controller
