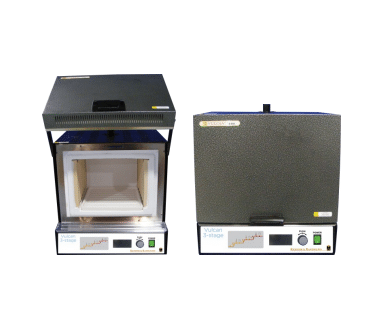

Vulcan® burnout furnaces

High Performance Hybrid Muffle Technology for Faster Heating and Cooling than Full Firebrick Exclusive to Vulcan® Benchtop Furnaces
Each Vulcan is constructed with a heavy gauge steel cabinet finished with a durable baked enamel coating. The vertical lift door directs heat away from the operator and is standard for safety and space conservation. Each furnace comes with a 1-YearLimited Warranty

Features:
• High performance hybrid muffle
• Longer life, more durable than fiber construction
• Faster heating and cooling than full firebrick
• Integrated door safety switch
• Durable stainless steel front panel
• Digital controller
− Single-Stage: digital temperature controller (programmable temperature, rate, hold time, alarm, °F/°C operation)
− Three-Stage: three-stage digital controller (nine multi-stage programs, rate, hold time, delay start, alarm, °F/°Cooperation)

Description

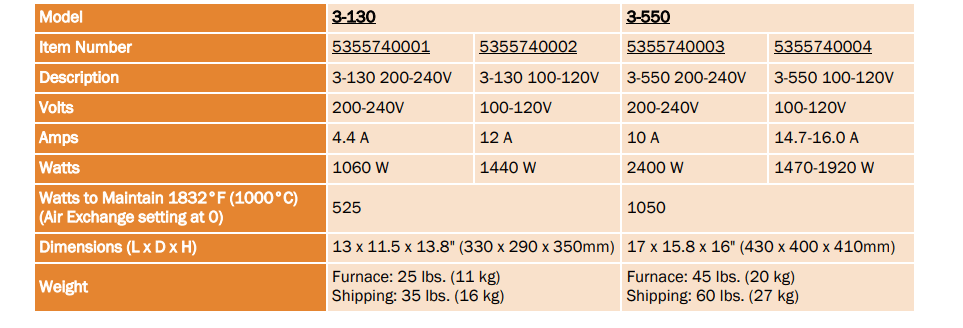

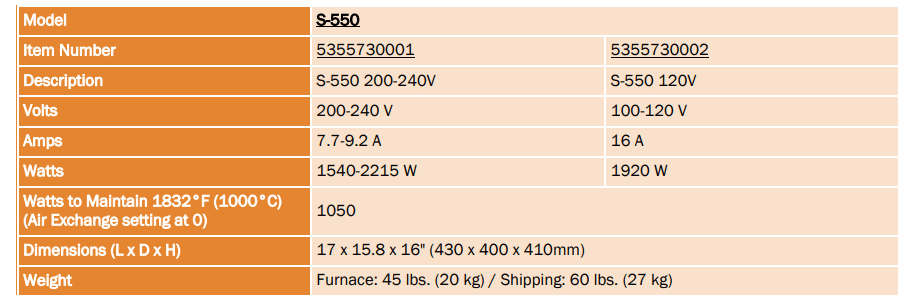

Technical Data*:

Wide Operating Temperature Range: 77-2012°F (25-1100°C)
Ambient Storage Temperature Range: 41-104°F (5+40°C)
Programmable Heat Rate: 1-54°F/min (1-30°C/min)
Programmable Hold Time
Single-Stage: 0:00-60:00 hrs.
Three-Stage: 0:00-99:59 hrs.
Muffle Temperature Uniformity ±15°F (±8°C) at steady state
Operating Temperature (Ambient) 41-104°F (5-40°C)
Electrical 50-60 Hz

*These results are based on the testing methods, frequency and procedures of Ransom & Randolph or its approved suppliers.
The levels referenced herein are only for general guidance and do not constitute a firm specification.
Options
Available in both single-stage and three-stage options, it has never been easier to select the right burnout furnace for your
specific application!

Vulcan® burnout furnaces

Vulcan® Single-Stage Burnout Furnaces
Vulcan single-stage burnout furnaces feature a single-stage controller. The single setpoint digital controller allows the operator to control the rate of temperature climb, and monitor the progress of the program on an easy-to-read, accurate digital display.
Adjust the heating rate of the furnace to meet the requirements of a wide range of investments with this easy-to-program
option.



















Vulcan® Three-Stage Burnout Furnaces
Vulcan® three-stage burnout furnaces are available in two standard muffle sizes and feature a three-series controller. Threestage digital programmable models have nine multi-stage programs, a hold temperature program, and a delay start option
which allows a program’s start time to be delayed for up to seven days.





















As the conditions or methods of use are beyond our control, we do not assume any responsibility and expressly disclaim any liability for any use of this product. Information contained herein is believed to be true and accurate but all statements or
suggestions are made without warranty, expressed or implied, regarding accuracy of the information, the hazards connected with the use of the material or the results to be obtained from the use thereof. Compliance with all applicable federal, state,
and local regulations remains the responsibility of the user. All potential liability related to the sale and use of this product is limited to the cost of the particular goods sold in their respective transactions.
