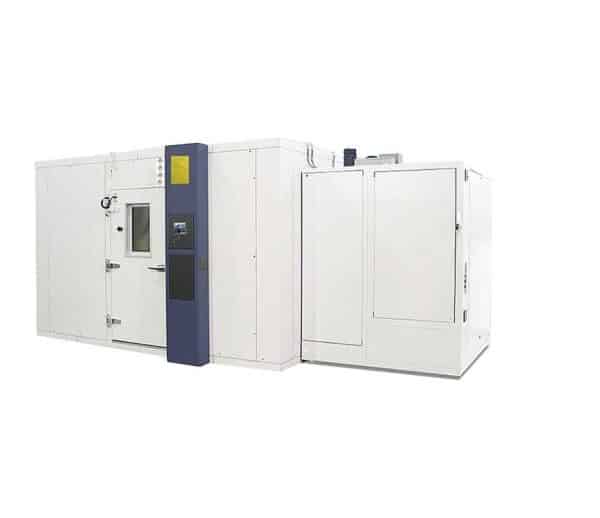

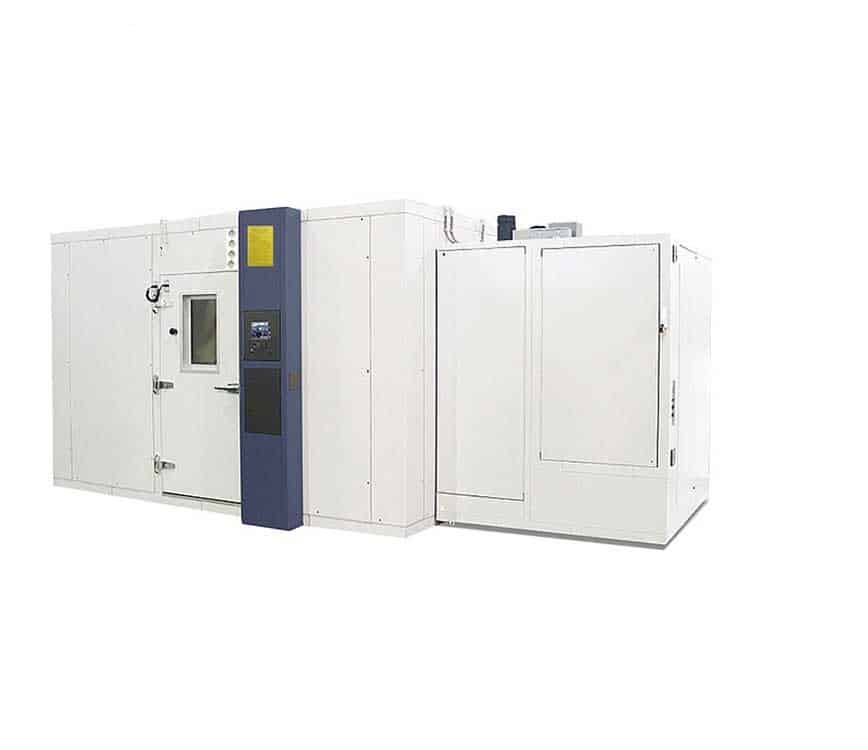

Walk In Test Chamber

Walk-in chambers are used to test how products and materials perform in different environmental conditions. They are used in many industries, including pharmaceuticals, food, electronics, and aerospace.
Uses
Stability testing: Used to determine the expiration dates of drugs, cosmetics, and other products
Shelf-life testing: Used to determine how long a product will stay fresh under different storage conditions
Aging tests: Used to test how products will change over time, such as surgical instruments and food
Environmental simulation: Used to test how products will behave in specific climate conditions
Research and development: Used to test construction materials, electronics, and other products
How they work
Walk-in chambers simulate specific temperature and humidity conditions
The chambers are insulated to maintain the desired conditions
Users can control and monitor the temperature, humidity, airflow, and pressure
Benefits
Walk-in chambers are larger than traditional climate chambers, so they can test or store large quantities of products
Walk-in chambers can be configured to meet specific testing requirements

Add to wishlist

Categories: Chamber, Climatic Chamber, TRANALAB Tags: Test Chamber, Test Room, walk in chamber, Walk in Test Chamber, Walk in test room

Description
Reviews (0)

Description

Introductions:
The walk in test room is one of the important testing equipment in the product development and testing stages. It is mainly used to test the product’s tolerance to
the external environment and the performance of its service life exposed to the natural environment for a long time, so as to optimize the defects of the product,
and to test the product’s service environment and service life. It is often used in the Arms industry, aerospace industry, auto parts, electronic and electrical parts,
plastics, chemicals Heat and cold resistance testing of pharmaceutical industry and related products.

Test Standards:
IEC60068-2-1:2007, IEC60068-2-78:2001,
IEC60068-2-30:2005,
IEC60068-2-4,
IEC68-2-14

Model	TR-WCH-8cbm
Capacity	8000 liters
Internal Size WDH	2000×2000×2000mm
External Size WDH	2700 × 2600 × 2700mm
Door Size	Double doors: 1800 × 1500mm- each (Inside & outside both open)
Temp Range	-40℃~+100℃
Temp Fluctuation	≤2.0℃
Heating Rate	2~3℃/min
Cooling Rate	0.7~1.0℃/min
Humidity Range	20% ~ 95%RH
Humidity Fluctuation	≤3%RH
Controller	7.0 inch program touch screen controller, RS232/485 port, USB data port + English computer software
Internal Material	SUS304 mirror stainless steel
External Material	Cold rolled steel plate white electrostatic spraying
Insulation Material	Polyurethane foam (PU foam)
Protection	Over-temperature protection, Water-shortage protection, Over-temperature of compressor protection, Power phases protection.
Cooling Way	Water cooling (Standard with water cooling tower)
Sensor	Temperature: PT100 Humidity: PT100 with wet gauze
Power Supply	380 ~ 415V, 50Hz, 3-phases
Warranty	1 year
Standards	Shelf×2, Wet gauze×1, Observation window×1, Observation light×1, Wheel caster×4, User manual×1, Controller manual×1, 100mm test hole×1
