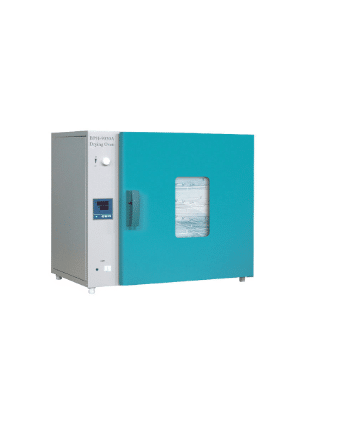

High-Temperature Oven(+100℃ ~ +500℃)

High-Temperature Oven(+100℃ ~ +500℃)

High-temperature ovens are used for diverse industrial, laboratory, and research applications, including sterilization, drying, curing (like hardens materials), annealing (to reduce stress in metals), and various forms of heat treatment such as aging, tempering, and stress relieving. They are employed in fields like electronics, pharmaceuticals, materials science, and medical device manufacturing to process samples and components that require precise, controlled high heat

Application: TR-HTO5  Series oven is high temperature oven with  +500 ℃ test, users can
use it for more higher temperature testing’s.
Features:

  1. TR-HTO5 series is reach +500 ℃.
  2. Air-forced circulation by motor.
  3. Timer function.
  4. Advanced digital controller, easy to operation.
  5. SUS304 stainless steel internal materials.
  6. 2-layers glass observation window.
  7. Ground protection, over-current protection, over-temperature protection, end-run alarm.
Add to wishlist
Category: Tags: , Brand:

Description

Specification

No Nama

Model

Volume

Suhu

Specification
1 High Temperature Oven

TR-HTO5-49

 49 Liter +100℃ ~ +500℃

+100 ~ +500℃, Dimension: 350×350×400mm WDH Internal material: SUS304 stainless steel, Temp Resolution: ±0.1 ℃; Temp Fluctuation: ±0.5 ℃; Ambient Temp: ±5 ℃ ~ +35 ℃, standard Shelf: 2pcs, Timer Range: 1 ~ 9999 min, Power: 3000W
2 High Temperature Oven

TR-HTO5-91

 91 Liter +100℃ ~ +500℃

+100 ~ +500℃, Dimension: 450×450×450mm WDH

Internal material: SUS304 stainless steel; Temp Resolution: ±0.1 ℃; Temp Fluctuation: ±0.5 ℃; Ambient Temp: ±5 ℃ ~ +35 ℃; standard Shelf: 2pcs, Timer Range: 1 ~ 9999 min, Power: 3500W
3 High Temperature Oven

TR-HTO5-112

 112 Liter +100℃ ~ +500℃

+100 ~ +500℃, Dimension: 450×500×500mm WDH Internal material: SUS304 stainless steel; Temp Resolution: ±0.1 ℃; Temp Fluctuation: ±0.5 ℃; Ambient Temp: ±5 ℃ ~ +35 ℃; standard Shelf: 2pcs, Timer Range: 1 ~ 9999 min, Power: 4000W
4 High Temperature Oven

TR-HTO5-216

 216 Liter +100℃ ~ +500℃

+100 ~ +500℃, Dimension: 600×600×600mm WDH Internal material: SUS304 stainless steel; Temp Resolution: ±0.1 ℃; Temp Fluctuation: ±0.5 ℃; Ambient Temp: ±5 ℃ ~ +35 ℃; standard Shelf: 2pcs, Timer Range: 1 ~ 9999 min, ower: 5000W
