SUHU 1750◦C FURNACE SUHU 60 Liter-MAGMATHERM E4 CONROLLER

High-temperature furnaces are used for a wide range of applications requiring elevated temperatures, typically from 1400°C to 1800°C or higher. These applications include heat treatment of materials, sintering, melting, and various thermal processesThey are commonly found in research labs, industrial settings, and specialized fields like dental labs

Description

Maximum/Continuous Working Temperature

  • User friendly operating menu in 4 line display for easy operation. Bricks and ceramic fiber boards.
  • Accurate temperature engineered insulation design.
  • Dualshell housing for low outer surface temperature.
  • Own uniqe electronic design measuring and controlling
  • Optional protective gas and software’s.
  • Current limit control for safe operation.
  • Durable inside lining made of high quality light insulating using S or B Type connection, door switch.
  • Lift up and Side words opening door possibilities
  • ±1 °C control accuracy. thermocouples.
  • Designed for minimal space requirements in the laboratory thanks to highly

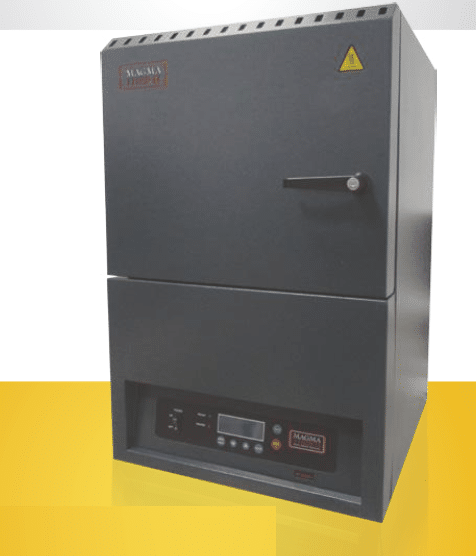

Chamber Furnace MTMo-1750-60-E4 Max 1750◦C, 60 Liter, Control Unit E4

  1. Inner Chamber Dimensions [mm] WxHxD: 320x420x450
  2. Product Outer Dimensions [mm] WxHxD: 672x1190x1059
  3. Net Weight [kg]: 195
  4. Power [W]: 19.900
  5. Max. Current [A]: 3x37A
  6. Electrical Connection: 3 Phase
  7. Heating Element: MoSi2
  8. Thermocouple Type : B Type
  9. Heating Element Placement: Vertically aligned next to the side walls
  10. Inner Insulation Material: Ceramic Fibre Board
  11. Front Face Insulation Material: Insulating Fire Brick
  12. Door Insulation Material: Ceramic Fibre Board
  13. Housing Material: Steel Sheet
  14. Housing Coating: Epoxy powder coating
  15. Chimney: Standard without fan
  16. Lockable Door Handle: Sideward
  17. Gross Dimensions [mm] WxLxD: 732x1250x1219
  18. Gross Weight [kg]: 234
