Giant Environment Chamber

Description

Giant Environmental Chamber

Plant Growth, Tissue Culture, Seed Germination, Environmental Stability Test Chamber

Feature

Heavy – Duty Mechanical Design

• Manufactured for completed sealed chamber structure
• Easy to move and install with sturdy foot master
• HEPA filtered clean air is supplied into the chamber for culture and growth, installed at roof top
• Perfect uniformity air circulation chamber structure, with air velocity control technology

Non-CFC/HCFC Refrigeration System

CFC / HCFC – free Hermetically sealed compressor and eco – friendly refrigerant gas are used for compliance with the New Environmental Regulation

Selection of refrigeration units for Installation

• Built-in refrigeration unit of chamber
• Exterior connection refrigeration unit at out door
• Air cooled condensing system
• Water  cooled condensing system

All-in-one Controller that integrates Monitoring and Recording Functions

• Reliable Hardware and Software
• 5.7 inch TFT LCD touch screen with dust – proof controller

Automatic shelf moving mechanism

Motorized lift up and down shelf in accordance with the height of products, plants and samples

Steel Fabricated Structure

Microprocessor Programmer PID Control with PC Interface (Option)

• Real time monitoring and data acquisition
• Display graph of saved data
• Graph and setup patterns

120 Patterns / 1200 Segments

• Monitoring on PC Software
• Remote operation & editing programs
• Graph & Data acquisition
• Converting saved data to spreadsheet

 Specification

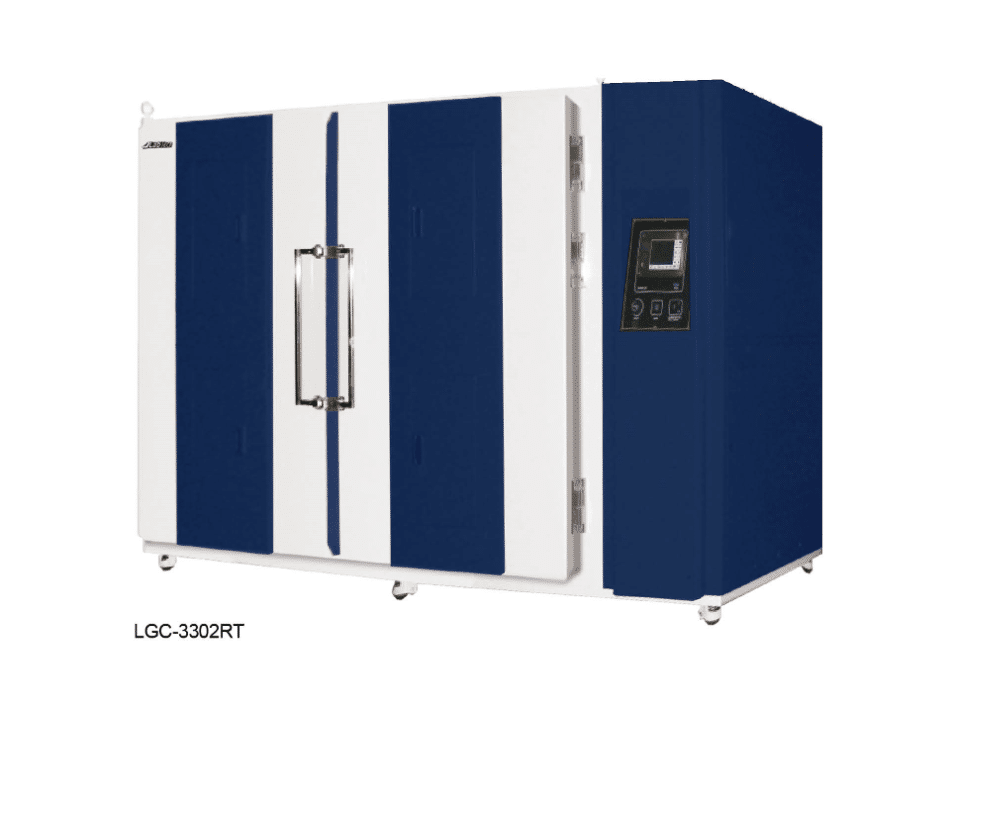

MODEL	LGC-3301RT	LGC-3302RT		LGC-3303RT
Dimensions      Inner (WxDxH mm)  Outer	1850x810x1550 2870x1150x2050	2000x1000x1550 3420x1300x2350		2500x1400x1550 3620x1700x2050
Capacity	2332 Liter	3000 Liter		5425 Liter
Internal usable area (m²)	1.5 m²	2 m²		3.5 m²
Temperature	Range 4°C to 60°C (Light Off) / 10°C to 60°C (Light On) Set Accuracy ±0.01°C / Uniformity : ±1.0°C at 25°C
Heater	4.5kW	4.5kW		4.5kW
Compressor	3 / 2HP	3 / 2HP		2HP
Humidity	Range 30% to 95% RH (Light off) / 30% to 85% RH (Light on) Set accuracy ±1% RH / Uniformity : ±2% to 3% at 24% Electronic Sensor (free of drying a wet and good response time) Evaporation by Fan with Heater and automatic water supply
Display	Graphic Display of set point and actual performance
Controller	Microprocessor PID Multi-Function
Illumination  Range Lamp Bank Control	0 to 25000 Lux (Option) Each tiers FL 20W x 8EA Ceiling of each tier	0 to 35000 Lux (Option) Each tiers FL 40W x 8EA Ceiling of each tier		0 to 35000 Lux (Option) Each tiers FL 40W x 8EA Ceiling of each tier
	Timer for each tiers and programming
Material  Interior Exterior	Stainless steel with polished finish Epoxy powder coated EGI Steel
Door	Two doors with four of viewing windows
Refrigeration  System	Selectable Air cooled of water cooled condenser / Built-in at chamber / of External Installation
Air Flow	2 sets of sirocco fan (200W), HEPA filtered air supply
Safety	Switch-off after alarm for overheating, water empty, current leak, over current breaker
Electric Supply	110V 60Hz or 220V 50/60Hz or 3800V 50/60Hz, 3Phase / 4Wires
MODEL	LGC-3311GT		LGC-3312GT		LGC-3313GT
CO₂ Giant Environment Chamber	Inert Gas ambient only

Optional Accessories
