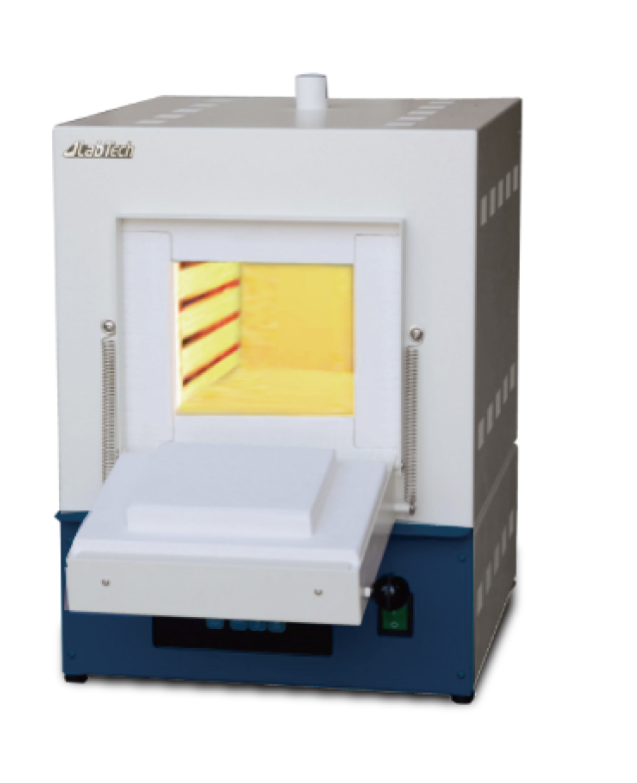

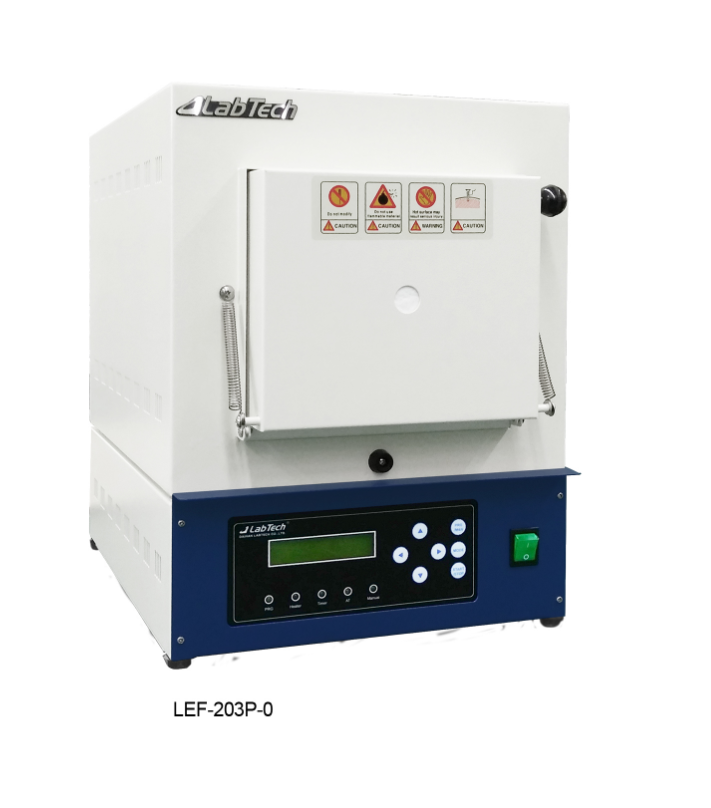

Electric Muffle Furnace – Fold Down Door

Muffle Furnace Fold Down Door Type Max Temperature from 1100°C to 1250°C
Durable Molded Ceramic Fiber Insulated Chamber And air jacked double walled case
Embedded Heating Element Replaceable embedded heating elements installed in each
10 Step Microprocessor Program Controller (Option)

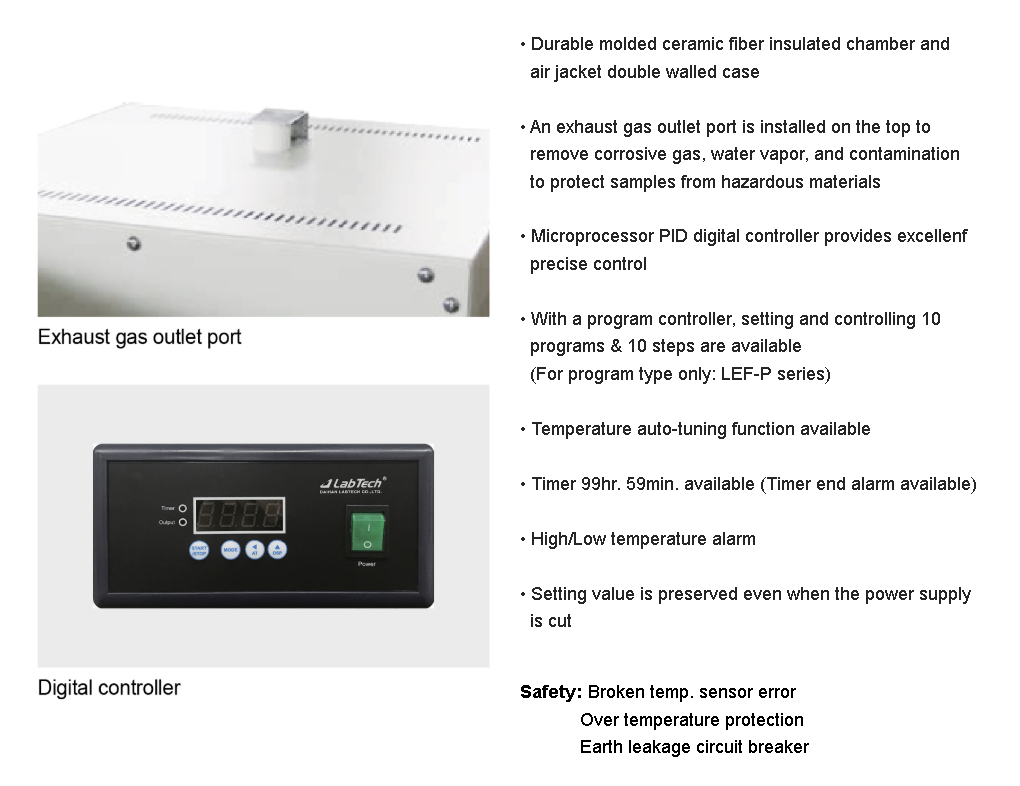

Microprocessor PID Digital Controller, Provides for accuracy and reliability, with timer function auto start on-off time and alarm system
Exhausted Gas Outlet Port Installed on the Top, remove corrosive gas, water vapor and contamination for protection from any hazardous materials

Description

Model	LEF-304S-1	LEF-308S-1	LEF-316S-1
Controller	Digital PID Controller
Model	LEF-304P-1	LEF-308P-1	LEF-316P-1
Controller	Microprocessor 10 Step Program Controller
Dimensions Interior	150x230x120	200x250x160	280x300x190
(WxDxHmm) Exterior	430x460x540	480x480x580	560x530x610
Capacity	4.0ℓ	8.0ℓ	16ℓ
Heating Capacity	1.4kW	2.8Kw	4Kw
Max Temperature	1100° (recommendable to use 200°C below the max. temperature)
Output Regulator Thermocouple	SSR unit control K type CA sensor
Heating Element	Embeded Heat Plate
Insulation	Embeded Heat Plate
Electric Supply	110V, 60Hz or 220V 1Phase or 380V 3 Phase,50/60Hz

Max. Temperature 1200°C Series (recommendable to use 200°C below the max. temperature)
Model	LEF-304S-2	LEF-308S-2	LEF-316S-2
Controller	Digital PID Controller
Model	LEF-304P -2	LEF-308P -2	LEF-316P -2
Controller	Microprocessor 10 Step Program Controller

Max. Temperature 1200°C Series (recommendable to use 200°C below the max. temperature)
Model	LEF-304S-3	LEF-308S-3	LEF-316S-3
Controller	Digital PID Controller
Model	LEF-304P -3	LEF-308P -3	LEF-316P -3
Controller	Microprocessor 10 Step Program Controller
