Description
Ideal for seed germination, plant growth, tissue culture, and environmental stability test
Features
Microprocessor PID Control
Provides high precision temperature, relative humidity, illumination and CO2 control for uniform and stable growth environment
10 Step Program with PC Interface
Controller provides automatic operation of various programmed cycles and maximum 999 cycles PC software for monitoring and data logging
Self-Diagnostic and Alarm system
Automatically check any malfunction or errors and visible alarm system
Automatic water supply System
Distilled water or de-ionized water with water purifier is supplied by built-in reservoir at chamber
Forced Air Circulation System
Silent and durable fan motor to maintain uniform temperature and humidity by air circulation from down to top air flow direction
None-CFC/HCFC Refrigeration System
CFC / HCFC-free Hermetically sealed compressor and eco- friendly refrigerated gas are used for compliance with the New Environment Regulator
Start on-Delay System
Protects products from stress by preventing sudden change of temperature and humidity, switch on / off time control
Technical Design and Structure
Complete sealed stainless steel chamber with light transferable inner tempered safety glass door with solid out door built-in light bank
Specification
| MODEL |

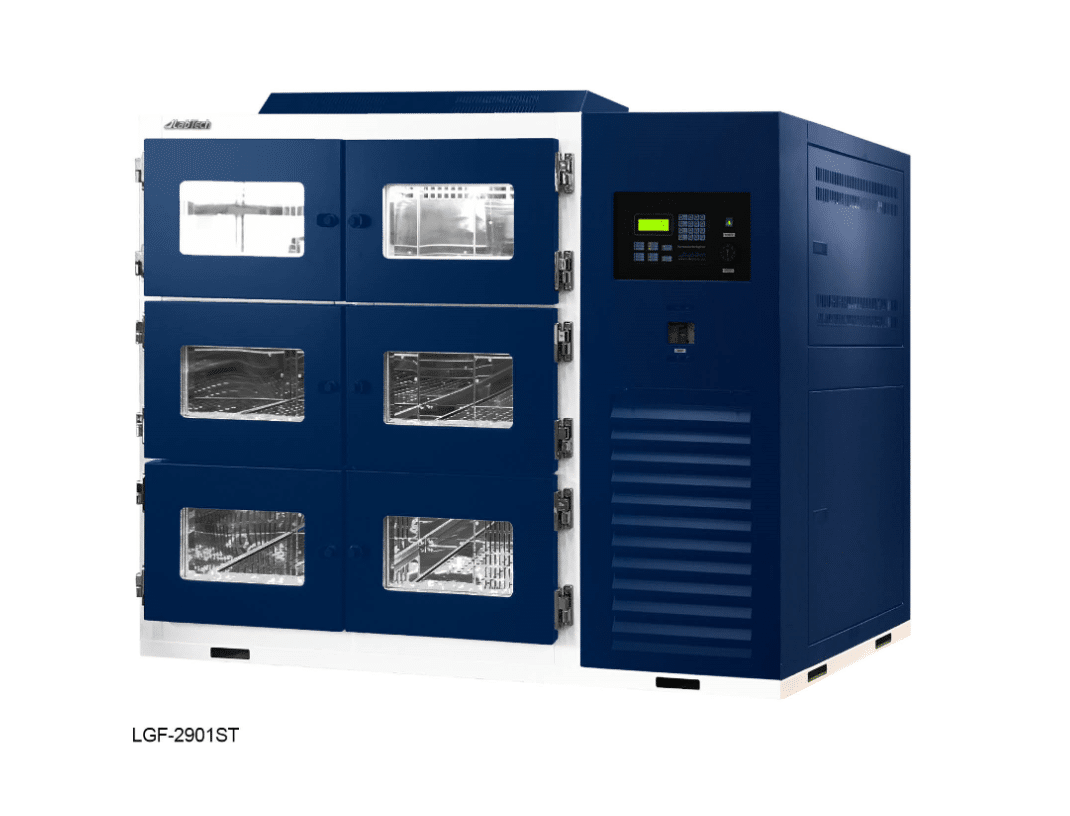

LGF-2901S |
LGF-2902S |
| Dimensions Inner
(wxdxh mm) Outer Stand |
1030 x 510 x 1070 1770 x 810 x 1250 1770 x 760 x 750 |
1030 x 510 x 1070 x 2 Chamber 2860 x 810 x 1250 2860 x 760 x 750 |
| Capacity |
563 ℓ |
562 ℓ x 2 Chamber |
| Temperature |
Range 0°C to 60°C (Light Off) / 10°C to 60°C (Light On) Set Accuracy ±0.01°C / Uniformity : ±1.0°C at 20°C |
|
| Controller |
Microprocessor PID Program Controller with Alarm System / 10 step program, 999 cycle |
|
| Heater |
3 kW |
4 kW |
| Compressor |
¾ HP |
1 HP |
| Humidity |
Range 30% to 98% RH Set accuracy ± 1% / Uniformity: ± 2% to 3% at 60% RH Evaporation by fan with Heater (Optional: Ultrasonic Humidifier) |
|
| Material Interior
Exterior Side wall |
Stainless steel 304 Epoxy powder coated EGI Steel Tempered safety vacuum sealed pair glass |
|
| Controller |
5.7 Inch touch screen program controller with alarm system. 120 pattern, 1200 segment, 999 cycles program, RS 232 / 485 |
|
| Door |
6 doors with view windows |
12 doors with view windows |
| Electric Supply |
110V 60Hz or 220V 50/60Hz |
|
