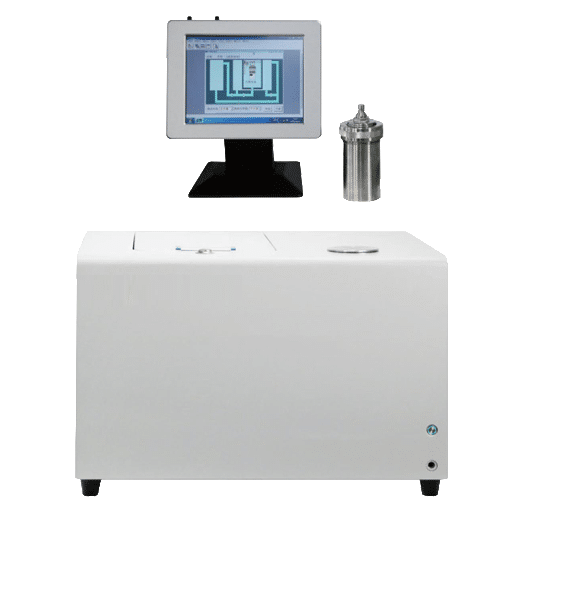

Automatic Oxygen Bomb Calorimeter

Description

Automatic Oxygen Bomb Calorimeter Feature:

Adopting semiconductor refrigeration to decide the refrigerating capacity according to the calorific value, the instrument can automatically adjust water temperature and keep water in a relative constant temperature range, realize the continuously and long time test requirement, and make sure the test result is correct.
With a electronic measuring cup itself, no need to weigh the water by manual, it can measure the water volume automatically, the repetitive error＜0.4g
Automatically detecting the resistance of ignition filament, automatically checking the installing condition of ignition filament before test.
Standard pipeline design, vastly shortening the pipeline, and more reasonable pipeline design to ensure more precision of test results.
Adopting professional discharge water ports, more convenient and fast when the instrument drains away water or change the water.
The electronic balance with communication function to share the data by the internet.

Specification:

Model	TR-BCM01C
Measuring Temperature Range	5℃～35℃
Temperature Resolution	0.0001℃
RSD (Relative Standard Deviation)	≤40J/K
Test Time Period (Main Period)	about 12 min
Heat Capacity	(9000～11000)J/K
Measuring Error	±60J/g (Benzoic acid)
Accuracy	Better than GB/T213-2008; The determination method of coal calorific value
Pressure Endurance of Oxygen Bomb	20 MPa
Suitable Environment	Ambient temp.: (15～28)℃, Continuous repeated testing, with an environmental temperature change of ≤ 2 ℃; Relative humidity: ≤85%
Total Power Consumption	≤0.2kW
Outline Size(L×W×H)(mm)	650×450×450
Net Weight	55kg
