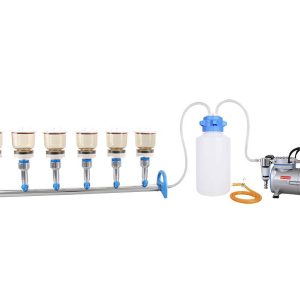

Vacuum Filtration System

Filtration Collocations
Flow Rate of the Pump17L/min, Suction Bottle Capacity 1000 ml

Features
* Wide range of pumps and filtration flasks
* High quality components
* Quick filtration results
* Easily exchangeable elements

Application Areas
* Suspended solids measurement
* HPLC
* Gas chromatography
* AA micro-analysis
* Mobile phase decontamination
* Food and beverages industry
* Pharma industry

Description

Product

Features

Components

Application Areas

TR-FS-300B

Modular design

Magnetic Stability Cup

Environmental friendly

Maintenance-free

Low noise

Added filters for enhanced pump longevity

Oil-free vacuum pump

VF1 magnetic filtration flask set

High-pressure resistant tube

Fiberglass filter membranes (47mm / 0.1 μm)

PTFE disc filter

Suspended solids measurement

Normal liquid filtration

Specifications

Model	TR-FS-300B
Flow Rate of the Pump(l/min)	17 l/min
Ultimate Vacuum(mbar)	150 mbar
Filtration Glass Set	VF1
Suction Bottle Capacity(ml)	1000 ml
Filter Diameter(mm)	47/50 mm
Filter Flask Capacity(ml) Filter Flask Material	300 ml (Magnetic Filter Cup)
Effective Filtration Area(cm2)	9.6 cm2
Outlet Connector(mm)	8 mm
