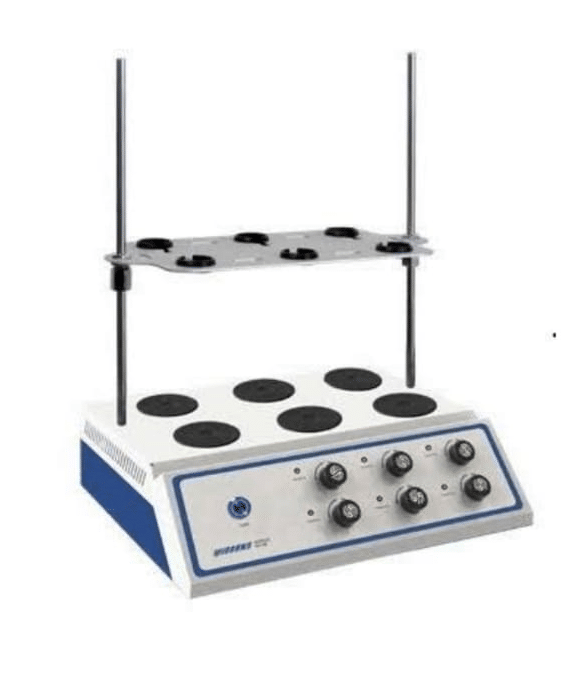

Soxhlet Extraction 6-position Heating Plate

A 6-position Soxhlet extraction heating plate is a laboratory instrument used for the continuous extraction of soluble components from solid materials using an organic solvent. It’s commonly employed in various scientific fields like natural products research, environmental analysis, and food and beverage analysis.

Heating plate

6×Ø85mm diameter cast-iron with embedded heating resistor

Description

Description
The design concept of WH-106 is compactness, safety and efficiency. For compactness, the layout of hotplates has been changed from traditional 6 holes in one row to 3 each in 2 rows, so that we can save 50% operating space. The distance between each hole is 55mm which is in accord with DIN 44548 and wide enough for users to handle the samples in back row conveniently. WH-106 contains six embedded heating plates with 85mm diameter, and its heating components are made in Germany, rugged and easy to maintain. Each plate with a heating indicator is controlled independently, and the temperature can reach 425℃ . For safety reason, each plate is surrounded by a rim for keeping electronics from spilling. The whole housing is made of stainless steel with paint coating

Applications
> COD digestion
> Lipid extraction
> Kinds of heating

Specification

Modle	WH-106
Heating plate	6×Ø85mm diameter cast-iron with embedded heating resistor
Safety	Each top plate is surrounded by a rim that protect electronics from spills. Spacing of 55mm between the heating plate is in accord with DIN 44548.
Max. Temperature	425℃
Control	Each heating plate is controlled independently
Power supply	6×450W
Order No.	178106
