Smart Dilutor W – Gravimetric Diluter

Weight range: 1g-2400 g (tare included)
Display Resolution: 0.1g
Weight inaccuracy: <1% (for weight ≥100 g)
Calibration weight: 100 g to 2000 g user-configurable (100 g steps)
Delivery speed: 950 mL/min (tube diameter: 5 mm)
Sample weight resolution: 0.01 g (after stabilization)
Dilution inaccuracy: <1% (for dilution weight ≥100 g) / <2% (for dilution weight ≥50 g)
Dispensing inaccuracy: <1% (for dispensing weight ≥100 g) / <2% (for dispensing weight ≥50 g)
Dispensing range: 20 g to full weighting range
Selectable surface vibration compensation levels: 0-4
Mains: 100~240ACV 50/60 Hz
Power: 40W
Dimensions (W×H×D): 300×265×325 mm
Weight: 6.5 kg
Printer connection: Serial RS232
Printer records include Date, Time, Operator ID, Sample ID, Sample Weight, Dilution Factor, Diluent ID, Total Weight, Final Accuracy, Last Calibration Date IUL Barcode scanner connection

Category: Centrifuge Tag: dilutor Brand: IUL

Description
Reviews (0)

Description

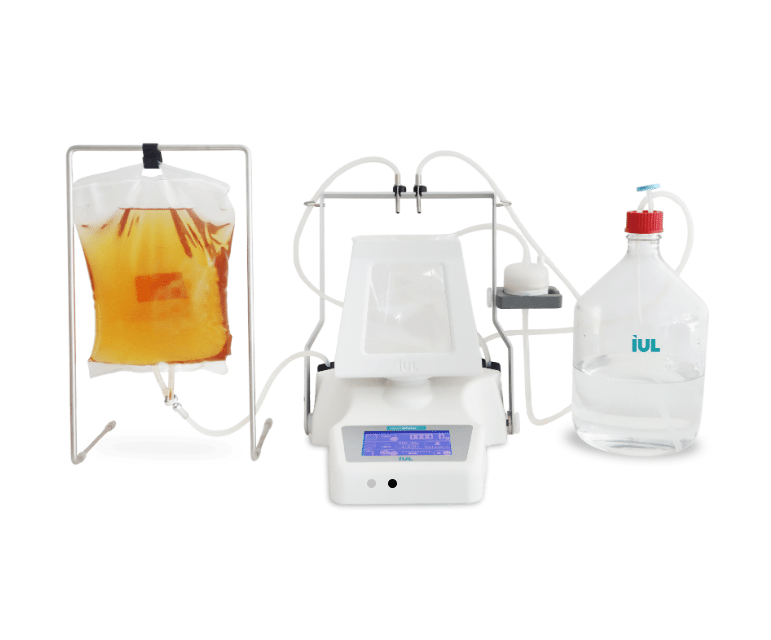

Smart Dilutor W – Gravimetric Diluter
Smart Dilutor W is the solution for labs seeking full processing capacity and traceability in gravimetric dilutions or liquid dispensing. This device ensures precision, speed, sample handling sterility, and detailed tracking of procedures.
Its precise weigh cell and powerful peristaltic pumps provide optimized gravimetric dilutions/ liquid dispensing to food, pharmaceutical, and cosmetic quality control labs. Samples are inserted inside sterile bags held by a sterility-ensuring holder. Smart Dilutor W weighs samples and dispenses an accurate amount of broth, diluting the sample to a configurable dilution factor (rational number). Samples are now ready to be homogenized for further testing.
Still relying on pre-filled dilution bottles? Switch to the Smart Dilutor W with Filter for faster, more accurate dilutions with less contamination risk – see how it compares.

System Highlights
User friendly: The instrument is commanded from a touch panel for easy operations and the 2-point calibration cuts calibration time to a few seconds.
Flexible: The instrument allows for an array of possibilities including multiple diluent usage, linking of two pumps to gain extra dilution speed, liquid dispensing. Diluents can be dispensed from any ready to use media bag or ISO 4796 lid bottles.
Connectivity and traceability: The device can be used with a barcode scanner to drive its advanced traceability features and send information to a printer to print records.
Compliant with ISO 7218, 6887-1 and FDA BAM
Application scope
The gravimetric diluter Smart Dilutor W offers an advanced automation solution to both gravimetric dilutions and liquid dispensing. Adapted to dilute samples both in 400 mL and 80 mL bags, the device can process samples of up to 5 g with an error <1%. It can dispense diluent from both ready-to-use media bags and regular media ISO 4796 bottles. One and two pump units are available. Five levels of instability tolerance make it possible to operate the device on unstable surfaces such as in laminar flow cabinets or on workbenches where a blender might be generating vibrations.
Records of dilutions can be kept by connecting Smart Dilutor W to a printer. Barcode scanners can be connected to the instrument to identify operators, samples, and diluents.
Bags can be placed in order in Porta bag bag holders pending further processing in Masticator blenders for homogenization. A specific platform and a multilevel dilution make it possible to perform dispensing procedures.
How to continue processing diluted samples
After dilution, sample-containing bags can be stored in Porta bag bag holders, pending homogenization in Masticator blenders. Once homogenized, the Eddy Jet 2 spiral plater is used to reduce the number of plates processed, offering a threefold decimal dilution counting range in a single plate. Following incubation, plates are automatically counted and fed with the Plate Handler or automatically counted and manually fed with the SphereFlash®.

Ordering information
Smart Dilutor W One Pump. For Bottle.: Cat.No. 90007900
Smart Dilutor W One Pump. For Bag.: Cat.No. 90007900BS
Smart Dilutor W Two Pumps. For Bottle.: Cat.No. 90007901
Smart Dilutor W Two Pumps. For Bag.: Cat.No. 90007901BS
Smart Dilutor W Two Pumps. For Bottles and Bags.: Cat.No. 90007901BB
Smart Dilutor W One pump. For 5 L bottle with one filter: Cat.No. 90007900FI
Smart Dilutor W Two pumps. For bottles with one filter and bags: Cat.No. 90007901FI
Smart Dilutor W Two pumps. For 5 L bottles with two filters: Cat.No. 90007901FII
