Oil Centrifuge Equivalent To ASTN 1796 and ASTM D4007

Oil Centrifuge Equivalent To ASTN 1796 and ASTM D4007

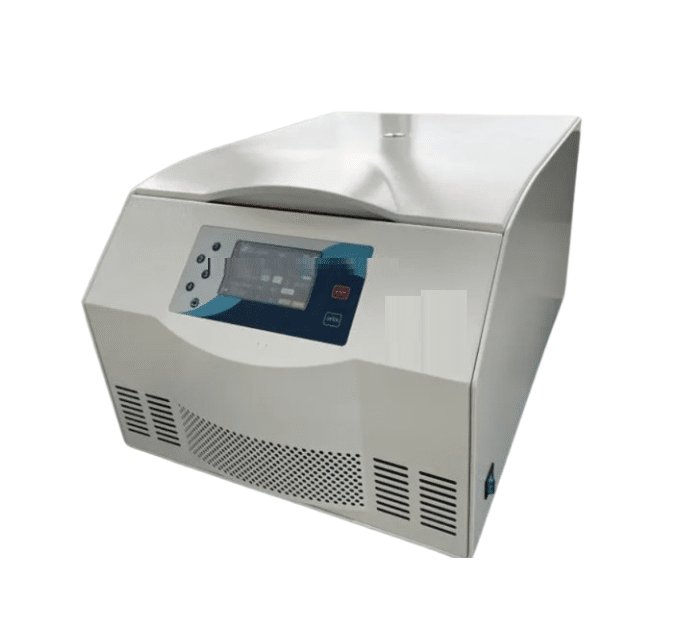

The TR-OC-171 Centrifuge Apparatus is used to determine the water and sediment content in crude oil and fuel oils via the centrifugal method.
Key Standards and Applications

  1. ASTM D4007 / GB/T 6533: Testing water and sediment in crude oil by the centrifuge method.
  2. ASTM D1796: Determining water and sediment in fuel oils and middle distillate fuels.
  3. Petroleum Industry: Used in oil exploration fields, refineries, and research laboratories to measure moisture and solid impurities.

How It Works:

  1. A mixture of crude oil and a water-saturated solvent (such as toluene) is placed into specialized conical centrifuge tubes.
  2. The unit spins the samples using a controlled rotational speed (up to 4,000 r/min) and temperature (up to 80°C).
  3. Centrifugal force separates the water and solid sediments to the bottom of the graduated glass tubes, allowing operators to read the exact volumes.
Add to wishlist
Category: Tags: , ,

Description

TR-OC-171 Crude oil moisture determination centrifuge is designed for the determination of water and sediment in crude oil (centrifugal method). Centrifuge Determination of water and sediment in crude oil. It is an ideal separation equipment for moisture determination in petroleum exploration industry and research institutes.

Precisely controlled by microcomputer processor, large-screen digital display of rotor number, speed,Time , temperature, centrifugal force, acceleration and deceleration rate and fault information, etc.

The ring heater is adopted, the heating speed is fast, the temperature is uniform, and it has the function of temperature control and constant temperature

Features.
1.The centrifuge tube is made of special technology, and the glass centrifuge tube will not break during operation.
2. It adopts high-torque carbon brushless frequency conversion motor, which is easy to operate; maintenance-free, dust-free,
3. The lifting speed is fast, the noise is small, and the stability of the instrument is greatly improved .
4.intensity of operators, overspeed , overtemperature automatic protection, unbalance protection, the body is made of high-quality steel structure , built-in stainless steel explosion-proof protection inner sleeve , stainless steel centrifugal Cavity , three layers of protection , safe and reliable, easy to use.
5. Equipped with a variety of rotors, and various adapters can be designed according to the test requirements, one machine with multiple functions .
6. Three levels of vibration reduction, the best centrifugal effect .

Specification

  1. Maximum speed max speed :4000r / min _
  2. Maximum capacity max volume :: 4 × 100ml
  3. Timing range timer:: 1 ~99 min
  4. Dimensions : 685 × 500 × 405 mm
  5. Speed control precision speed accuracy :± 20 r / min
  6. Maximum centrifugal force max RCF :3830× g
  7. Temperature range :Room temperature +10 ºC ~80 ºC
  8. Noise noise :≤ 58 dBA
  9. Net heavy net weight :6 7 KG
