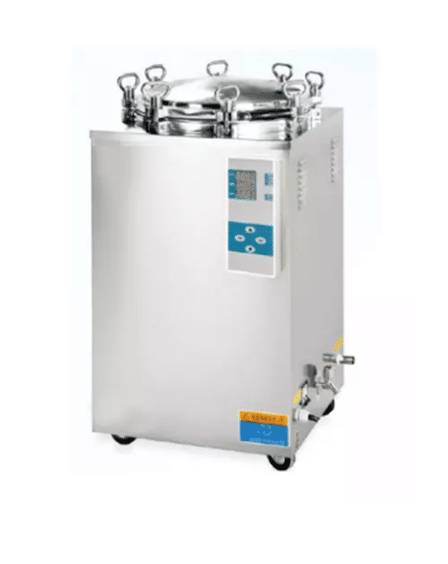

TR-ACTL-Series Digital Display Vertical Pressure Autoclave

A vertical pressure steam sterilizer, commonly called an autoclave, is a device used to eliminate microorganisms and spores from various materials and equipment by using high-temperature steam under pressure. It’s widely used in laboratories, healthcare facilities, and pharmaceutical industries to ensure sterility in research, medical procedures, and manufacturing

Description

SPECIFICATION

Model	TR-ACTL-35	TR-ACTL -50	TR-ACTL -75	TR-ACTL -100	TR-ACTL -120	TR-ACTL -150
Capacity	35L(φ318*450)mm	50L(φ340*550)mm	75L(φ400*600)mm	100L(φ440*650)mm	120L(φ480*660)mm	150L(φ510*740)mm
Working pressure	0.22Mpa
Working temperature	134℃
Max working pressure	0.23Mpa
Temperature range	105-134℃
Timer scope	0-99min or 0-99 hour r59min
Heat average	≤±1℃
Power	2.5KW/AC220V.50HZ	3KW/AC220V.50HZ	4.5KW/AC220V.50HZ		6KW/AC220V.50HZ
Exterior size(mm)	480460850	520520980	560580980	5905901080	6006401140	6706901130
Packing size(mm)	570550970	590590110	810680650	6806501220	7307301270	7607601270
G.W/E.W	56/42kg	68/50kg	90/70kg	105/85kg	125/100kg	135/110kg
