SENSOR MONITORING Of FINE DUST and PARTICLES

SENSOR MONITORING Of FINE DUST and PARTICLES

Permanent measurement and monitoring of particles

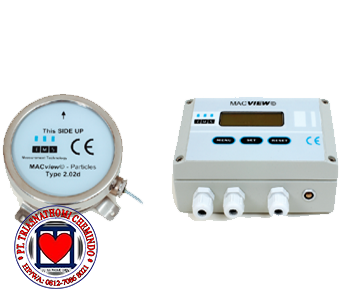

The MACView® Particles is a monitoring system for particles like dust and smoke. It is specially developed for use in work rooms and industrial environments. The MACView® Particles measures, reproduces data, registers data using software and controls an external alarm, if needed. The principle of measurement is based on the principle of diffusion of infrared light.

Displaying, alarming and registering

The MACView® Particles displays the measured values on an LCD-display in mg/m3 (milligramme per cubic metre). The value can be compared to the MAC-value (Maximum Allowable Concentration) directly.

In the monitoring system, 2 relais and 1 analog output are built-in which can be used to trigger an external alarm- or ventilation installation. It is possible to activate an acoustical or visual alarm to make people aware of too high concentrations.

With the optional software (useable for Windows), data can be saved, printed and graphical represented remotely. The data can be exported to every desired format to be used in own files. In the software, the MAC-values of the various kinds of dusts are adjustable seprately. It is also possible to set up for multiple dusts. The program will send the correct average MAC-value to the MACView® Particles.

TECHNICAL SPECIFICATION

Material of Housing	aluminium
Approval	CE
Protection classification read-out unit	IP65
Dimensions	61 x 116 x 189 mm
Sensor Diameter	130 mm
Warming-up time	240 sec.
Short-term Stability	± 3%
Long-term Stability	± 5%
Signaling / Alarming	mg/m3 en hysterese configurable
Display specifications	using back-lit LCD display with 2 rows x 16 characters
Unit MAC value on display	parts per million (ppm)
Measurement Range	up to 16 mg/m3
Acceptance of Alarm	by use of reset pushbutton
Communication with pc	via an RS232-cable
Outputs	– 2 relaisoutputs (up to 250 VAC switchable separately) – 1 analoge output 0-10 V or 4-20 mA (at choice)
Speed of the microcontroller	up to 20MHz
Fastening	Read-out unit and sensor can be fastened to the wall together or apart easily.
Software	The MACregister® software is useable for Windows 95, 98, ME, NT, 2000 and Windows XP.
