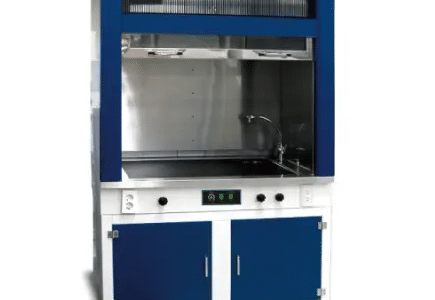

Fume Hood
Design and Performance are conform to International Standard
- SEFA 1-2002
- ASHRAE 110-95
- AS2243-8
- EN14175
- BS 7258
Features:
Built-in Sirocco Fan on the Top
Compact designed centrifugal suction and blower
Air Leak Proof Cabinet Structure
With high clean stainless steel interior work station and epoxy powder coated steel exterior for long durability
Tempered Safety Glass Sliding Door
For maintain high quality cleanliness and for clear view operated by counter balanced weight
Low Noise Level and Vibration Free
56-60 dB high efficiency sirocco fan blower
Analog Controller On-Off Switch
On – Off switch with analog speed controller
Inflow Air Velocity Control
Range 0.3m/s to 1.0 m/s
Mechanical Design Structure
High durable and sturdy base cabinet and Fume Cupboard
Silver Model
Design and Specification is available from your requirement
Material Selection Guide
Work Top (Refer to page. 104)
- Synthetic ceramic work top as standard
- Stainless steel top 304 or 316 as optional
- Epoxy resin top. Heavy duty as optional
- Trespa phelonic work top as optional
Sink
- PP or PVC Round type
- PP or Stainless steel Rectangular Type
Exterior Structure
- Epoxy powder coated EGI
- Hair-lined stainless steel 430 or 304 as optional
Interior Structure
- Hair-lined stainless steel 430 as standard
- Hair-lined stainless steel 340 or 316 as optional
- Trespa phenolic resin as optional
- Epoxy powder coated EGI for economic models
Exterior Color Selection for 2 tone
- Main color : off-white / light grey / dark grey
- Front panel : dark blue / red purple / all light grey
- Base Stand : dark blue / red purple with light grey
Centrifugal sirocco fan
- EGI steel fan with epoxy powder coated
- Polypropylene fan for anti – acid
Sash Glass
- Tempered safety glass t : 5mm
- Tempered safety glass with laminated t : 6mm
